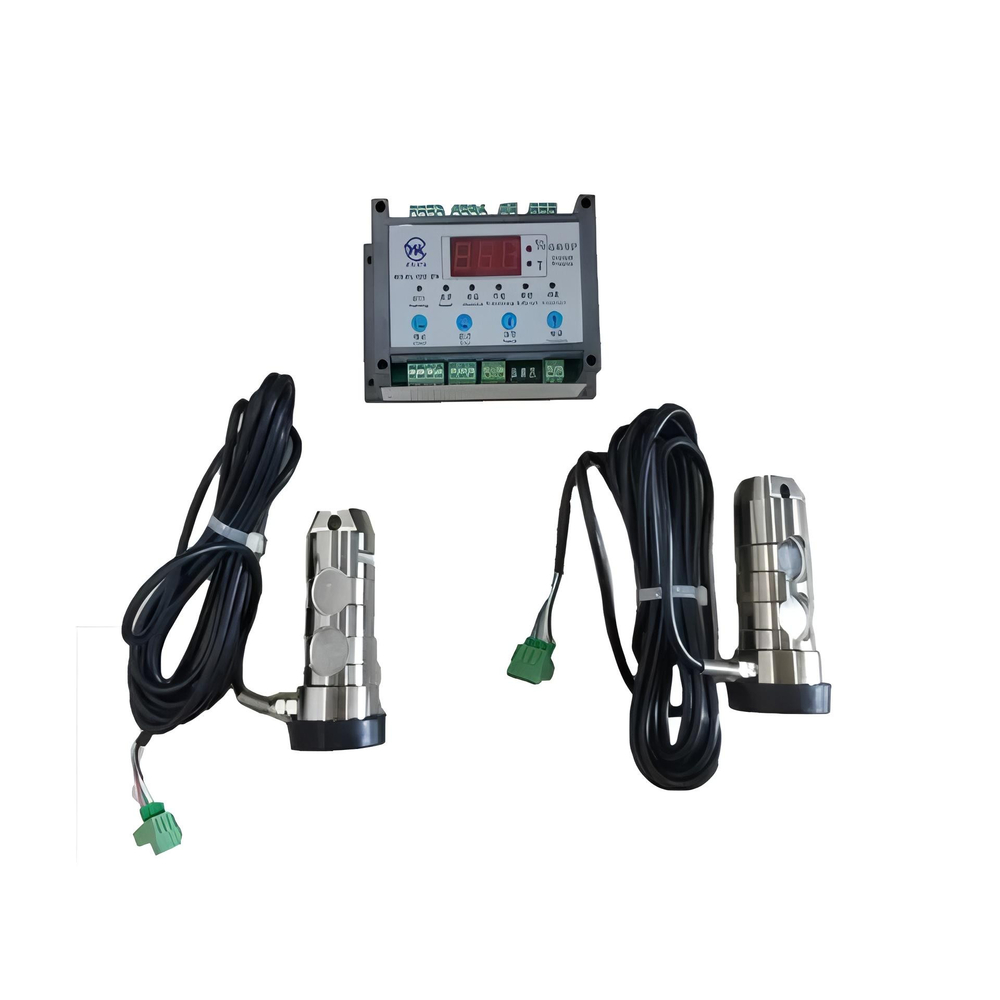

Spare Parts - For all brands of Man & Material Hoist ( MMH)- Load Cell Display with Pin

Spare Parts - For all brands of Man & Material Hoist ( MMH)- Load Cell Display with Pin Specification

Surface Finish
Powder Coated/Anodized (depends on manufacturer)

Lifting Speed
Not Applicable (Display Unit)

Frequency
50/60 Hz (typically for associated electronics)

Hook
Not Applicable (Sensor/Display Component)

Usage
Man & Material Hoist Load Measurement and Display

Power Source
Electrical, Panel-connected

Sling Type
N/A (Load cell display measures force/load, not connected to sling)

Maximum Lifting Weight
Up to capacity of associated Load Cell (1-10 Ton usual range)

Maximum Lifting Height
Not Applicable (Display Unit)

Lift Speed
Not Applicable (Sensor/Display Component)

Power
Low power consumption, <50W (varies by model)

Voltage
Typically DC 24V or AC 220V (depending on model)

Rotating Speed
N/A (Not applicable to display unit)

Insulation Grade
IP65/IP67 (based on design and application)

Trolley
Not Applicable (Display Unit)

Capacity
Varies as per load cell rating (commonly 1-10 Ton)

Application
Suitable for all brands of Man & Material Hoist (MMH)

Protection Rating
IP54/IP65 (Depending on enclosure)

Mounting Type
Panel Mount or Surface Mount (with Pin as shown)

Display Type
Digital LED Display

Brand Compatibility
Universal for MMH, cross-compatible with leading hoist control systems

Dimensions
Compact design as per machine requirements, image suggests approx. 12 cm width

Material
ABS/Metal Body

Connector Type
Pin type connectors for secure fixation

Operating Temperature
-10C to +50C

Accuracy
High accuracy load indication, within 1% of full scale

Signal Input
From Load Cell Sensor (mV/V signal)

Spare Parts - For all brands of Man & Material Hoist ( MMH)- Load Cell Display with Pin Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Spare Parts - For all brands of Man & Material Hoist ( MMH)- Load Cell Display with Pin About

With over 30 years of expertise, a 200+ strong team, and 300+ machines under AMC/PMC care, Mast Climber Private Limited is Indias trusted partner for hoist, MCWP, and RSP maintenance, installation, breakdown response, spare support, and technical upgrades.

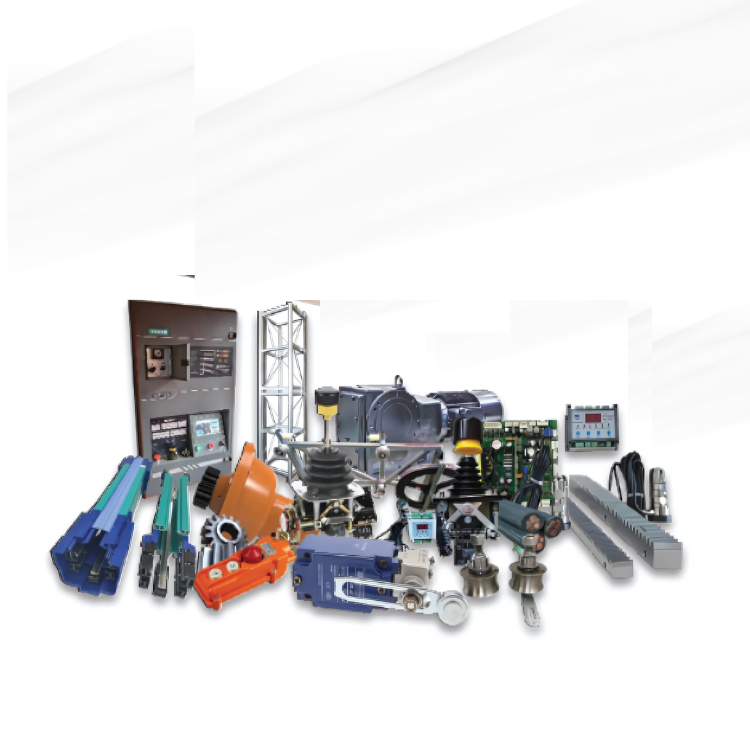

We offer a wide range of spare parts, including Mast sections, Ties, Rollers, Pinions, Limit Switches, Cables, Cable Trolleys, Safety Devices, Veichi Control Panels, Load Cells, Gearbox Motors, Liners, Electromagnetic Brakes, and more.

Universal Compatibility Across MMH Brands

Engineered for seamless integration, this load cell display is cross-compatible with all prominent Man & Material Hoist brands, making it a versatile upgrade or replacement. Its adaptable interface and secure pin-type connectors ensure easy retrofit to existing hoist control systems in diverse industrial settings.

Precision Monitoring for Enhanced Safety

Achieve optimal safety and performance with high-accuracy load indication, maintaining error margins within 1%. The reliable LED display provides real-time monitoring, supporting informed operational decisions and helping prevent overloading incidents during hoist operation.

Durable and Flexible Mounting Options

Constructed to suit harsh industrial environments, the unit features ABS or metal enclosures with up to IP65 protection. Its compact profile and choice of panel or surface mounting ensure the device fits a wide variety of hoist control panels, providing straightforward installation and lasting service.

FAQ's of Spare Parts - For all brands of Man & Material Hoist ( MMH)- Load Cell Display with Pin:

Q: How does the Load Cell Display with Pin function in Man & Material Hoists?

A: The display connects directly to the load cell sensor installed on the hoist. It receives the mV/V signal from the sensor, processes it, and shows the real-time load value on its digital LED screen with high accuracy, assisting operators in monitoring hoisted loads instantly.

Q: What benefits does this display unit offer compared to standard load indicators?

A: This unit offers universally compatible pin-type connectors, substantial durability (up to IP65 rating), and precise load measurement within 1% of full scale. Its digital LED display ensures clear, reliable readings, helping improve operational safety and efficiency for various hoist setups.

Q: Where can the Load Cell Display be installed on the hoist system?

A: The display is designed for flexibility-it can be mounted on a control panel or as a surface mount using the provided pin connectors, allowing for robust and accessible placement as per machine requirements and user preference.

Q: What is the process for integrating this display unit with existing MMH brands?

A: Integration involves connecting the unit's pin-type connectors to the compatible load cell sensor and power source (DC 24V or AC 220V, depending on the model). Its universal design supports retrofitting with most MMH brands and control systems, making installation straightforward.

Q: When is it advisable to use or upgrade to this Load Cell Display?

A: It is recommended when you need reliable, accurate load monitoring-especially for enhancing safety or upgrading from analog or less precise indicators. It's also ideal when existing displays are incompatible with new load cell sensors or require replacement due to environmental wear.

Q: What load capacity can this display handle?

A: The display itself can process values as per the connected load cell, typically covering a range from 1 to 10 tons. Exact capacity depends on the load cell sensor's specifications, enabling flexible use across different hoist applications.
